Swagger3 整合 oauth2 认证token

原文地址:https://blog.csdn.net/z2926781/article/details/112620551

引入swagger3

<!--Swagger3 -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>

Swagger3在header中,进行Authorization token的认证,配置文件:

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.OAS_30).pathMapping("/")

                // 定义是否开启swagger,false为关闭,可以通过变量控制
                .enable(swaggerProperties.getEnable())

                // 将api的元信息设置为包含在json ResourceListing响应中。
                .apiInfo(apiInfo())

                // 接口调试地址
                .host(swaggerProperties.getTryHost())

                // 选择哪些接口作为swagger的doc发布
                .select()
                .apis(RequestHandlerSelectors.any())
                .paths(PathSelectors.any())
                .build()

                // 支持的通讯协议集合
                .protocols(newHashSet("https""http"))
                .securitySchemes(securitySchemes())
                .securityContexts(securityContexts());
    }

    /**
     * 认证的安全上下文
     */

    private List<SecurityScheme> securitySchemes() {
        List<SecurityScheme> securitySchemes = new ArrayList<>();
        securitySchemes.add(new ApiKey("Authorization""Authorization""header"));
        return securitySchemes;
    }

    /**
     * 授权信息全局应用
     */

    private List<SecurityContext> securityContexts() {
        List<SecurityContext> securityContexts = new ArrayList<>();
        securityContexts.add(SecurityContext.builder()
                .securityReferences(defaultAuth())
                .forPaths(PathSelectors.any()).build());
        return securityContexts;
    }

    private List<SecurityReference> defaultAuth() {
        AuthorizationScope authorizationScope = new AuthorizationScope("global""accessEverything");
        AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
        authorizationScopes[0] = authorizationScope;
        List<SecurityReference> securityReferences = new ArrayList<>();
        securityReferences.add(new SecurityReference("Authorization", authorizationScopes));
        return securityReferences;
    }

访问swagger3 ,地址:http://127.0.0.1:8080/swagger-ui/index.html

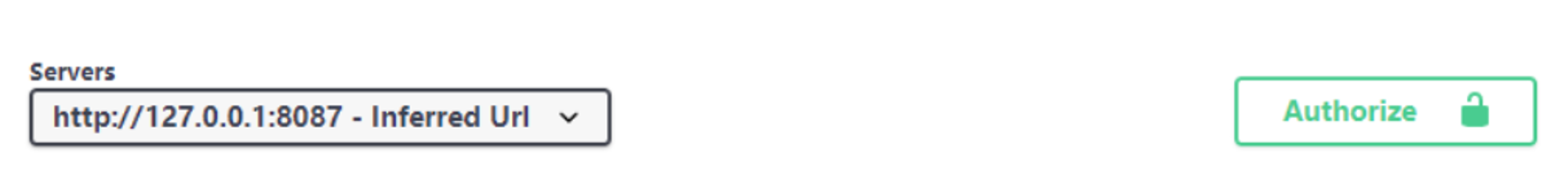

点击Authorize

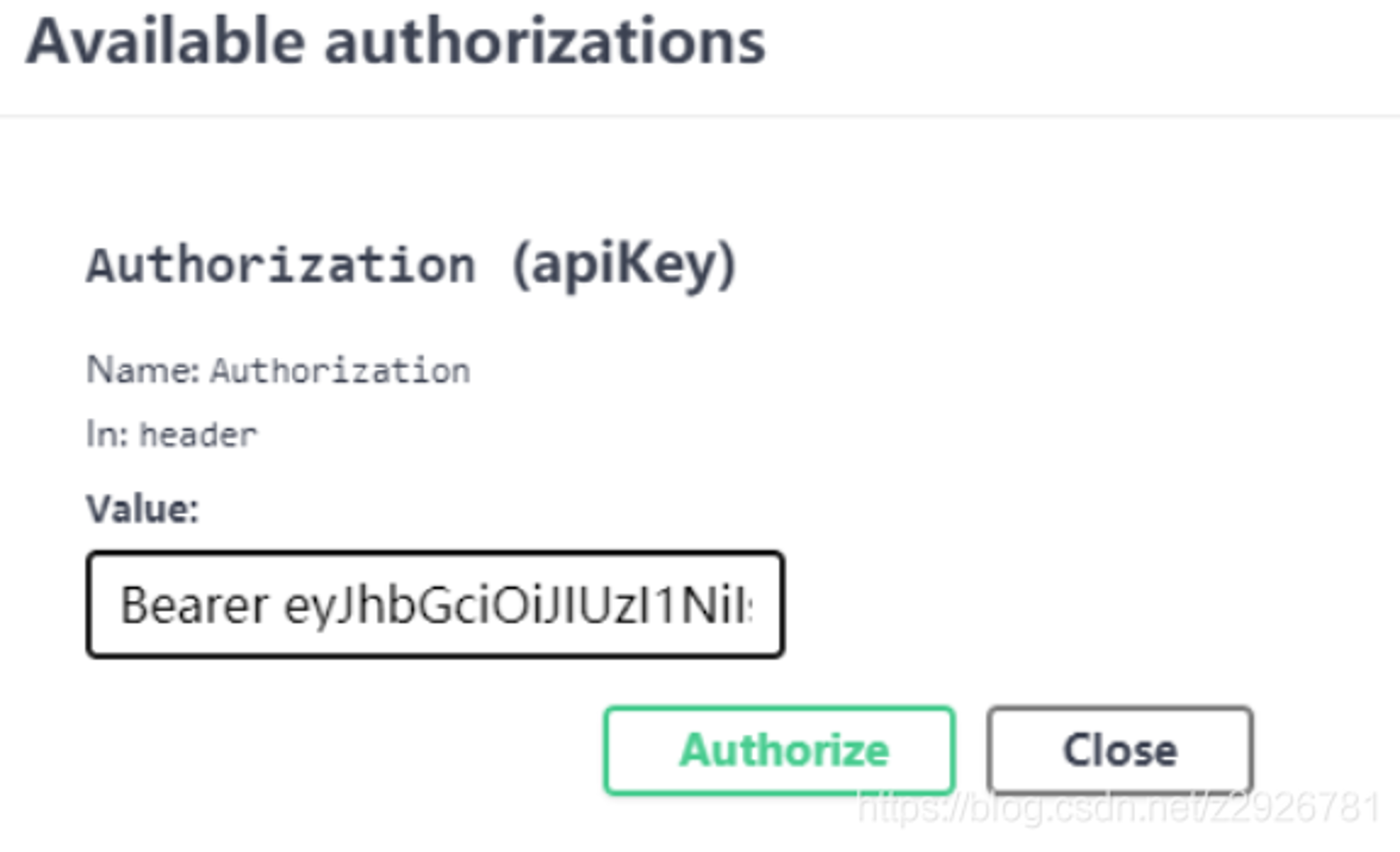

输入token:

保存如下

SwaggerConfig.java 完整代码:

package com.ym.ms.config;

import com.ym.ms.commons.pojo.SwaggerProperties;
import org.apache.commons.lang3.reflect.FieldUtils;
import org.springframework.boot.SpringBootVersion;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.util.ReflectionUtils;
import org.springframework.web.servlet.config.annotation.InterceptorRegistration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.*;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.contexts.SecurityContext;
import springfox.documentation.spring.web.plugins.Docket;

import java.lang.reflect.Field;
import java.util.*;

@EnableOpenApi
@Configuration
public class SwaggerConfig implements WebMvcConfigurer {

    private SwaggerProperties swaggerProperties;

    public SwaggerConfig(SwaggerProperties swaggerProperties) {
        this.swaggerProperties = swaggerProperties;
    }

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.OAS_30).pathMapping("/")

                // 定义是否开启swagger,false为关闭,可以通过变量控制
                .enable(swaggerProperties.getEnable())

                // 将api的元信息设置为包含在json ResourceListing响应中。
                .apiInfo(apiInfo())

                // 接口调试地址
                .host(swaggerProperties.getTryHost())

                // 选择哪些接口作为swagger的doc发布
                .select()
                .apis(RequestHandlerSelectors.any())
                .paths(PathSelectors.any())
                .build()

                // 支持的通讯协议集合
                .protocols(newHashSet("https""http"))
                .securitySchemes(securitySchemes())
                .securityContexts(securityContexts());
//            // 授权信息全局应用
//            .securityContexts(securityContexts());
    }

    /**
     * API 页面上半部分展示信息
     */

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder().title(swaggerProperties.getApplicationName() + " Api Doc")
                .description(swaggerProperties.getApplicationDescription())
                .contact(new Contact("YM"null"ymkj@gmail.com"))
                .version("Application Version: " + swaggerProperties.getApplicationVersion() + ", Spring Boot Version: " + SpringBootVersion.getVersion())
                .build();
    }


    /**
     * swagger2 认证的安全上下文
     */

    private List<SecurityScheme> securitySchemes() {
        List<SecurityScheme> securitySchemes = new ArrayList<>();
        securitySchemes.add(new ApiKey("Authorization""Authorization""header"));
        return securitySchemes;
    }

    private List<SecurityContext> securityContexts() {
        List<SecurityContext> securityContexts = new ArrayList<>();
        securityContexts.add(SecurityContext.builder()
                .securityReferences(defaultAuth())
                .forPaths(PathSelectors.any()).build());
        return securityContexts;
    }

    private List<SecurityReference> defaultAuth() {
        AuthorizationScope authorizationScope = new AuthorizationScope("global""accessEverything");
        AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
        authorizationScopes[0] = authorizationScope;
        List<SecurityReference> securityReferences = new ArrayList<>();
        securityReferences.add(new SecurityReference("Authorization", authorizationScopes));
        return securityReferences;
    }

    @SafeVarargs
    private final <T> Set<T> newHashSet(T... ts) {
        if (ts.length > 0) {
            return new LinkedHashSet<>(Arrays.asList(ts));
        }
        return null;
    }

    /**
     * 通用拦截器排除swagger设置,所有拦截器都会自动加swagger相关的资源排除信息
     */

    @SuppressWarnings("unchecked")
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        try {
            Field registrationsField = FieldUtils.getField(InterceptorRegistry.class, "registrations", true);
            List<InterceptorRegistration> registrations = (List<InterceptorRegistration>) ReflectionUtils.getField(registrationsField, registry);
            if (registrations != null) {
                for (InterceptorRegistration interceptorRegistration : registrations) {
                    interceptorRegistration
                            .excludePathPatterns("/swagger**/**")
                            .excludePathPatterns("/webjars/**")
                            .excludePathPatterns("/v3/**")
                            .excludePathPatterns("/doc.html");
                }
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}
package com.ym.ms.config;

import com.ym.ms.commons.pojo.SwaggerProperties;
import org.apache.commons.lang3.reflect.FieldUtils;
import org.springframework.boot.SpringBootVersion;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.util.ReflectionUtils;
import org.springframework.web.servlet.config.annotation.InterceptorRegistration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.*;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.contexts.SecurityContext;
import springfox.documentation.spring.web.plugins.Docket;

import java.lang.reflect.Field;
import java.util.*;

@EnableOpenApi
@Configuration
public class SwaggerConfig implements WebMvcConfigurer {

    private SwaggerProperties swaggerProperties;

    public SwaggerConfig(SwaggerProperties swaggerProperties) {
        this.swaggerProperties = swaggerProperties;
    }

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.OAS_30).pathMapping("/")

                // 定义是否开启swagger,false为关闭,可以通过变量控制
                .enable(swaggerProperties.getEnable())

                // 将api的元信息设置为包含在json ResourceListing响应中。
                .apiInfo(apiInfo())

                // 接口调试地址
                .host(swaggerProperties.getTryHost())

                // 选择哪些接口作为swagger的doc发布
                .select()
                .apis(RequestHandlerSelectors.any())
                .paths(PathSelectors.any())
                .build()

                // 支持的通讯协议集合
                .protocols(newHashSet("https""http"))
                .securitySchemes(securitySchemes())
                .securityContexts(securityContexts());
//            // 授权信息全局应用
//            .securityContexts(securityContexts());
    }

    /**
     * API 页面上半部分展示信息
     */

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder().title(swaggerProperties.getApplicationName() + " Api Doc")
                .description(swaggerProperties.getApplicationDescription())
                .contact(new Contact("YM"null"ymkj@gmail.com"))
                .version("Application Version: " + swaggerProperties.getApplicationVersion() + ", Spring Boot Version: " + SpringBootVersion.getVersion())
                .build();
    }


    /**
     * swagger2 认证的安全上下文
     */

    private List<SecurityScheme> securitySchemes() {
        List<SecurityScheme> securitySchemes = new ArrayList<>();
        securitySchemes.add(new ApiKey("Authorization""Authorization""header"));
        return securitySchemes;
    }

    private List<SecurityContext> securityContexts() {
        List<SecurityContext> securityContexts = new ArrayList<>();
        securityContexts.add(SecurityContext.builder()
                .securityReferences(defaultAuth())
                .forPaths(PathSelectors.any()).build());
        return securityContexts;
    }

    private List<SecurityReference> defaultAuth() {
        AuthorizationScope authorizationScope = new AuthorizationScope("global""accessEverything");
        AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
        authorizationScopes[0] = authorizationScope;
        List<SecurityReference> securityReferences = new ArrayList<>();
        securityReferences.add(new SecurityReference("Authorization", authorizationScopes));
        return securityReferences;
    }

    @SafeVarargs
    private final <T> Set<T> newHashSet(T... ts) {
        if (ts.length > 0) {
            return new LinkedHashSet<>(Arrays.asList(ts));
        }
        return null;
    }

    /**
     * 通用拦截器排除swagger设置,所有拦截器都会自动加swagger相关的资源排除信息
     */

    @SuppressWarnings("unchecked")
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        try {
            Field registrationsField = FieldUtils.getField(InterceptorRegistry.class, "registrations", true);
            List<InterceptorRegistration> registrations = (List<InterceptorRegistration>) ReflectionUtils.getField(registrationsField, registry);
            if (registrations != null) {
                for (InterceptorRegistration interceptorRegistration : registrations) {
                    interceptorRegistration
                            .excludePathPatterns("/swagger**/**")
                            .excludePathPatterns("/webjars/**")
                            .excludePathPatterns("/v3/**")
                            .excludePathPatterns("/doc.html");
                }
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}

源码地址:

https://gitee.com/zetor2020/ym-paas-template/blob/master/src/main/resources/example/SwaggerConfig.java
