Lenet Implementation For Cell Segmentation

Lenet Implementation For Cell Segmentation

I. IDEA

  1. Divide the preprocessed image into small patches (20*20 size)
  2. classify these patches as blank or cell border or nucleus
  3. use different colors to mark different types of patches
    • For example: blank: White; cell border: green; nucleus: red

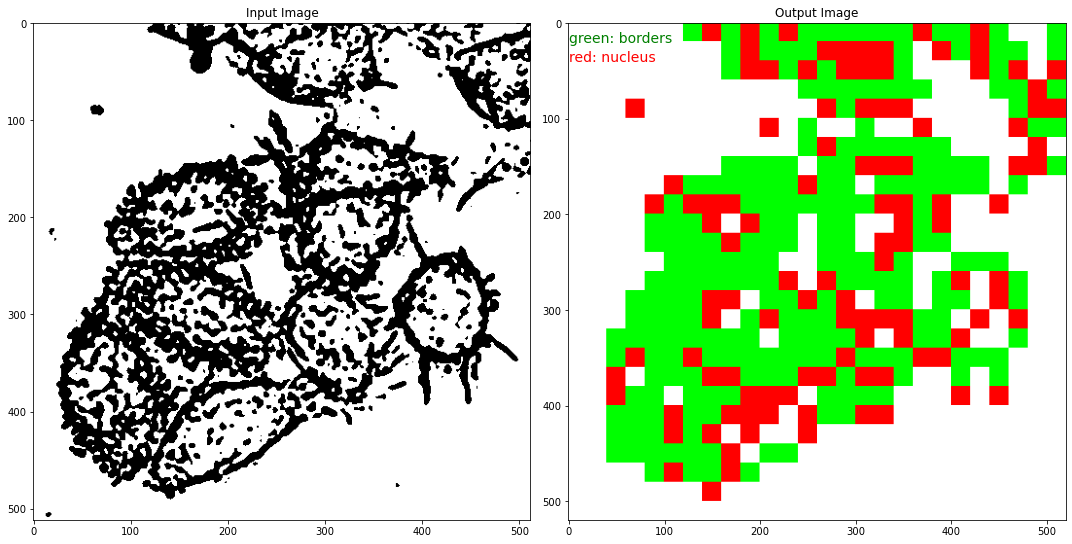

result preview:
image-20210402083547389

2. DATASET

  1. blank data

    • number: 714 image-20210402083943177
  2. border data

    • number: 1658

      image-20210402084049242
      image-20210402084049242
  3. center data

    • number: 1208

      image-20210402084132724
      image-20210402084132724

3. IMPLEMENTATION

3.1) Data Augmentation

Transformations we have done:

  • horizontal and vertical shift
  • horizontal and vertical flip
  • random rotation
  • random zoom
  1. import libraries

    import tensorflow as tf
    from tensorflow.keras.preprocessing.image import ImageDataGenerator, array_to_img, img_to_array, load_img
    from numpy import expand_dims
    from matplotlib import pyplot
    from skimage import io
    from skimage.io import ImageCollection
  2. load original images

    blank_arr = ImageCollection('Blank/*.tif')
    border_arr = ImageCollection('Border/*.tif')
    center_arr = ImageCollection('Center/*.tif')
  3. Function for data augmentation

    def da(img,prefix,dest):
        data = img_to_array(img)
        samples = expand_dims(data, 0)

        # horizontal shift
        datagen = ImageDataGenerator(width_shift_range=[-1,1])
        it = datagen.flow(samples, batch_size=1)
        for i in range(9):
            batch = it.next()
            image = batch[0].astype('uint8')
            io.imsave(f'dest/{prefix}{i}.tif',image)

        # vertical shift
        datagen = ImageDataGenerator(width_shift_range=0.2)
        it = datagen.flow(samples, batch_size=1)
        for i in range(9,18):
            batch = it.next()
            image = batch[0].astype('uint8')
            io.imsave(f'dest/{prefix}{i}.tif',image)

        # random rotation
        datagen = ImageDataGenerator(rotation_range=90)
        it = datagen.flow(samples, batch_size=1)
        for i in range(18,27):
            batch = it.next()
            image = batch[0].astype('uint8')
            io.imsave(f'dest/{prefix}{i}.tif',image)

        # horizontal and vertical flip
        datagen = ImageDataGenerator(horizontal_flip=True, vertical_flip=True)
        it = datagen.flow(samples, batch_size=1)
        for i in range(27,36):
            batch = it.next()
            image = batch[0].astype('uint8')
            io.imsave(f'dest/{prefix}{i}.tif',image)

        # random zoom
        datagen = ImageDataGenerator(zoom_range=[0.5,1.0])
        it = datagen.flow(samples, batch_size=1)
        for i in range(36,45):
            batch = it.next()
            image = batch[0].astype('uint8')
            io.imsave(f'dest/{prefix}{i}.tif',image)
  4. generate the images

    for i in blank_arr:
        da(i,f'Blank_aug_{i}','Blank_aug')

    for i in border_arr:
        da(i,f'Border_aug_{i}','Border_aug')

    for i in center_arr:
        da(i,f'Center_aug_{i}','Center_aug')

3.2) Lenet

  1. import libraries

    import tensorflow as tf
    import matplotlib.pyplot as plt
    from tensorflow import keras
    from skimage.io import ImageCollection
    from pprint import pprint
    from skimage import io
    import numpy as np
  2. load the dataset

    • load the images as numpy arrays and stack them to a single numpy array
    • define the labels
    • split the dataset into training dataset and test dataset
    def readAllImages(path):
        img_arr = ImageCollection(path + '/*.tif')
        return img_arr,len(img_arr)

    # load the data
    blank = readAllImages('''dataset/Blank_aug''')
    border = readAllImages('''dataset/Border_aug''')
    center = readAllImages('''dataset/Center_aug''')

    '''
    border label = 0
    center label = 1
    blank label = 2
    '''


    arr1,len1 = blank[0],blank[1]   # 2
    arr2,len2 = border[0],border[1]  # 0
    arr3,len3 = center[0],center[1# 1

    train_images = []
    test_images = []
    train_y = []
    test_y = []

    # also split the data into training data and test data
    for i in range(len1):
        if i >= 1000:
            test_images.append(arr1[i])
            test_y.append(2)
        else:
            train_images.append(arr1[i])
            train_y.append(2)

    for i in range(len2):
        if i >= 1000:
            test_images.append(arr2[i])
            test_y.append(0)
        else:
            train_images.append(arr2[i])
            train_y.append(0)

    for i in range(len3):
        if i >= 1000:
            test_images.append(arr3[i])
            test_y.append(1)
        else:
            train_images.append(arr3[i])
            train_y.append(1)

    # build the dataset
    y_train = np.array(train_y,dtype='int32')
    y_test = np.array(test_y,dtype='int32')
    x_train = np.stack(train_images,axis=0)
    x_test = np.stack(test_images,axis=0)
  3. preprocessing the data

    • the input image for lenet should be 32x32, whereas our patches have size of 20x20
      • padding the patches
    • normalize the data
    • using one-hot encoding for the labels
    # Fill 0s around the image (six 0s on the top, bottom, left and right respectively)
    # 20x20 => 32x32
    paddings = tf.constant([[0,0],[66], [66]])
    x_train = tf.pad(x_train, paddings)
    x_test = tf.pad(x_test, paddings)

    def preprocess(x, y):
        x = tf.cast(x, dtype=tf.float32) / 255.
        x = tf.reshape(x, [-132321])
        y = tf.one_hot(y, depth=3)  # one_hot encoding
        return x, y

    train_db = tf.data.Dataset.from_tensor_slices((x_train, y_train))
    train_db = train_db.shuffle(10000)  # randomly shuffle the dataset
    train_db = train_db.batch(128)
    train_db = train_db.map(preprocess)

    test_db = tf.data.Dataset.from_tensor_slices((x_test, y_test))
    test_db = test_db.shuffle(10000)  # randomly shuffle the dataset
    test_db = test_db.batch(128)
    test_db = test_db.map(preprocess)
  4. Model initialization

    • model summary: 3 constitutional layers and 2 fully connected layers

      image-20210402091145126
      batch=32
      model = keras.Sequential([
          keras.layers.Conv2D(65),
          keras.layers.MaxPooling2D(pool_size=2, strides=2),
          keras.layers.ReLU(),

          keras.layers.Conv2D(165),
          keras.layers.MaxPooling2D(pool_size=2, strides=2),
          keras.layers.ReLU(),

          keras.layers.Conv2D(1205),
          keras.layers.ReLU(),

          keras.layers.Flatten(),
          keras.layers.Dense(84, activation='relu'),
          keras.layers.Dense(3, activation='softmax'
      ])
      model.build(input_shape=(batch, 32321))
  5. compile and fit model

    model.compile(optimizer=keras.optimizers.Adam(), loss=keras.losses.CategoricalCrossentropy(), metrics=['categorical_accuracy'])
    # 训练
    history = model.fit(train_db, epochs=15)
    image-20210402092246241
    image-20210402092246241
  6. predict on test set

    model.evaluate(test_db)
    image-20210402092357088
    image-20210402092357088

3.3) Visualization

Use different colors to mark different types of patches

  • blank: White
  • cell border: green
  • nucleus: red

Input sample image:

image-20210402095244512
image-20210402095244512
# 1. load the pretrained model
lenet_model = tf.keras.models.load_model('lenet-model.h5')

# 2. load the input image
input_image = io.imread(...)

# 3. crop the image to patches
delta = 20
results = []
for i in range(26):
    for j in range(26):
         cropped = input_image[i*delta:(i+1)*delta,j*delta:(j+1)*delta]
         results.append(cropped)

patches = np.stack(results,axis=0)

# 4. preprocessing the patches
'''
similar codes in lenet implementation
'''

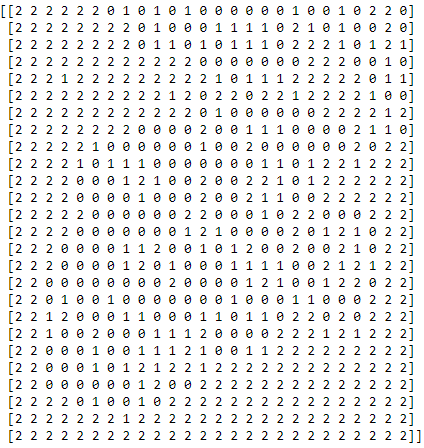

# 5. predict the patches
results=lenet_model.predict(db,1,verbose =2)
label = [np.argmax(results[i]) for i in range(len(results))]
label_2d = np.array(label).reshape((26,26))
image-20210402100104890
image-20210402100104890
# 6. mark the patches with colors
output_image = np.zeros((520,520,3))
for i in range(26):
    for j in range(26):
         v = labels_2d[i][j]

         # blank
         if v == 2:
            output_image[i*20:(i+1)*20,j*20:(j+1)*20] = [255,255,255# white

         # center
         elif v == 1: output_image[i*20:(i+1)*20,j*20:(j+1)*20] = [255,0,0# red

         # border
         else: output_image[i*20:(i+1)*20,j*20:(j+1)*20] = [0,128,0]       # green


# 7. show the image
'''
...
'''
